INTRODUCING
THE AIRFISH

Experience the future of coastal maritime transport with the AirFish family of Wing-In-Ground (WIG) craft, where speed, sustainability, safety, simplicity, and smoothness seamlessly unite.

01
ELEVATE
YOUR
JOURNEY
WHERE THE SKY
MEETS THE SEA
02
02
SWIFT icon
SWIFT
At 3 times the speed of marine craft, less traveling time means more time enjoying the destination.
SUSTAINABLE icon
SUSTAINABLE
Higher efficiency due to an increased life-to-drag ratio resulting from flying close to the surface.
SAFE icon
SAFE
Unique wing design provides inherent stability in ground effect, no complex flight control system required.
SIMPLE icon
SIMPLE
Powered by car engines, and operated by a marine captain, requires minimal maintenance and simple infrastructure.
SMOOTH icon
SMOOTH
Avoid rough seas without turbulence, low cabin noise ensures a smooth and comfortable ride.
AIRFISH

    The AirFish is a WIG craft boasting a compact footprint. Engineered to harvest the ground effect for efficiency, it can be operated by just 1-2 crew members while accommodating 8-9 passengers. Powered by a pair of robust automotive V8 engines, fueled by standard gasoline, the AirFish combines speed with practicality.

    Certified in accordance with International Maritime Organization WIG guidelines, it sets the standard for innovative maritime transportation.

AIRFISH

General

  • Classified as Type-A WIG craft under maritime rules
  • Fully composite construction
  • Reverse delta wing design
  • Automotive engines
    • AIRFISH

    Physical Dimensions

  • Wingspan: 15.0m
    • AIRFISH

    Physical Dimensions

  • Wingspan: 15.0m
  • Overall Length: 17.2m
    • AIRFISH

    Physical Dimensions

  • Wingspan: 15.0m
  • Overall Length: 17.2m
  • Overall Height: 3.5m
    • AIRFISH

    Physical Dimensions

  • Wingspan: 15.0m
  • Overall Length: 17.2m
  • Overall Height: 3.5m
  • Max Draft: 0.55m
    • AIRFISH

    Performance

  • Max Height in Flight: 7m
  • Max Wind during T/O & landing: 15 kts
  • Cruise Speed: 100 kts
  • Max Speed: 110 kts
  • Cruise Height: 1-2m
  • Max Wave at T/O & Landing: 1m / sea state 3
    • AIRFISH

    Payload & Interior

  • Cabin Length: 4.0m
  • Cabin Width: 1.4m
    • AIRFISH

    Payload & Interior

  • Cabin Length: 4.0m
  • Cabin Width: 1.4m
  • Payload: 1000kg
  • Seating Capacity: 2 Crew + 8 Passengers
    • AIRFISH

    Payload & Interior

  • Cabin Length: 4.0m
  • Cabin Width: 1.4m
  • Payload: 1000kg
  • Seating Capacity: 2 Crew + 8 Passengers
  • Baggage Capacity: 160kg

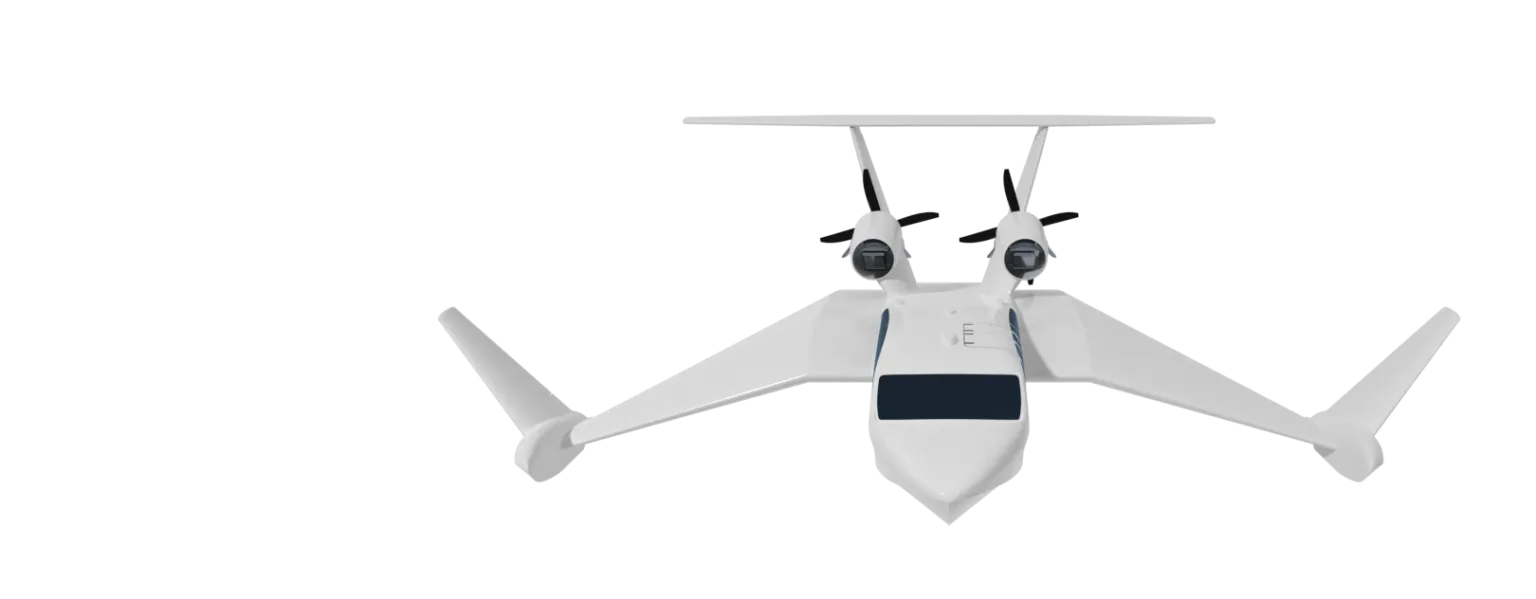

    • AirFish Aerodynamics

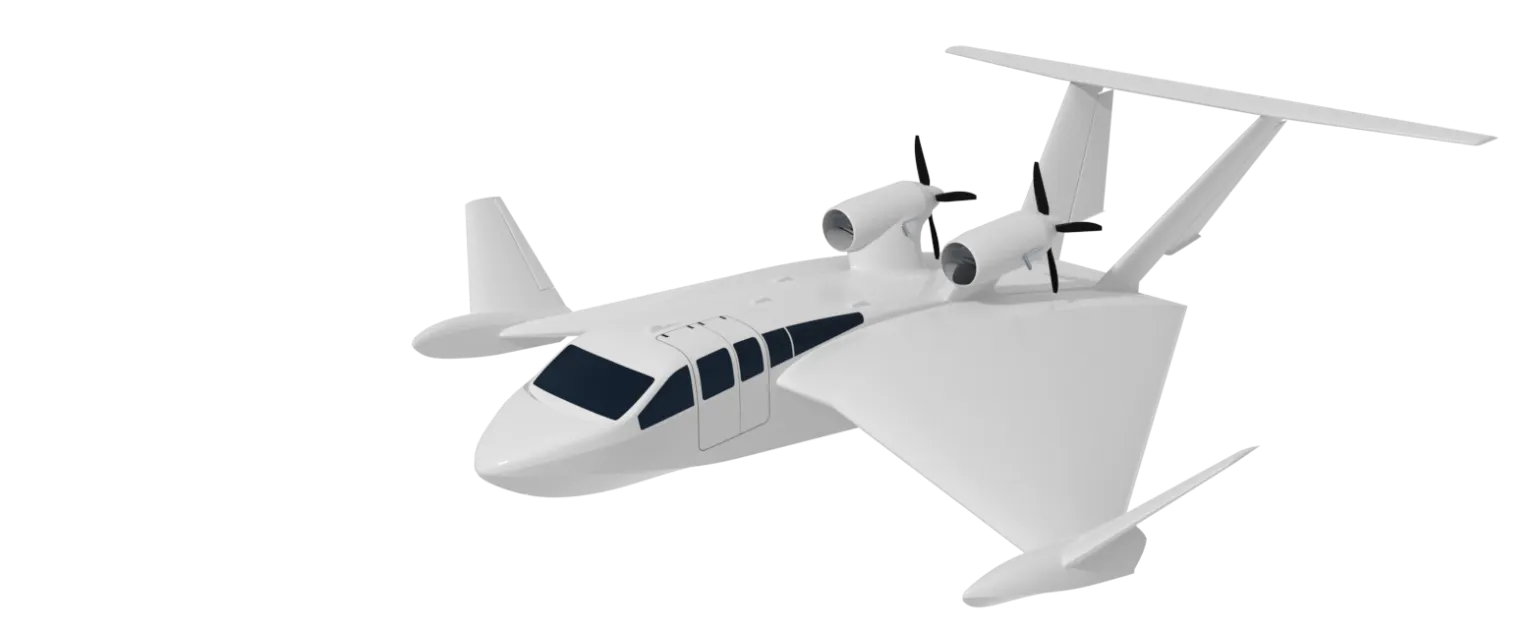

    AirFish Wing Configuration

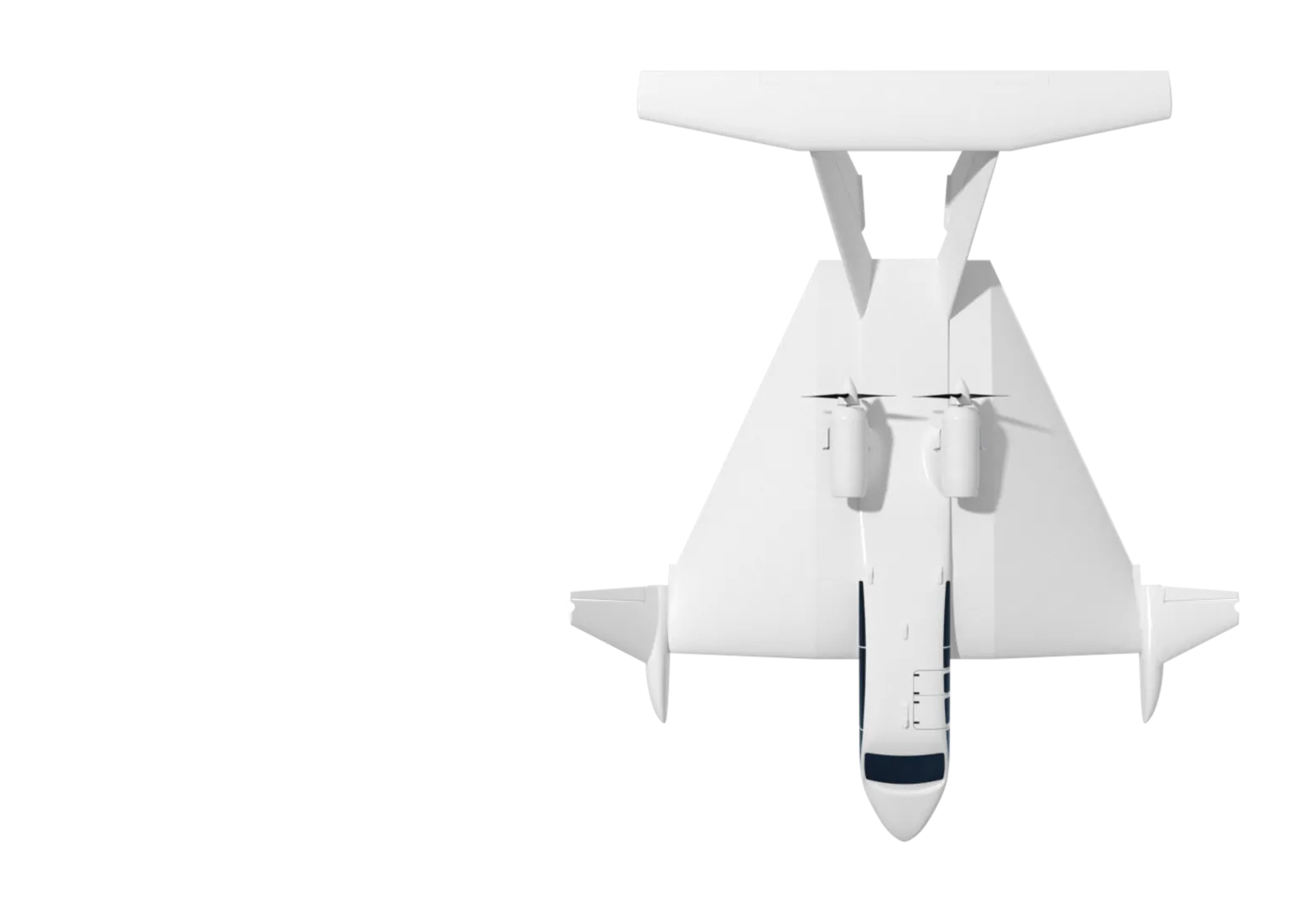

    AirFish V8 Engine

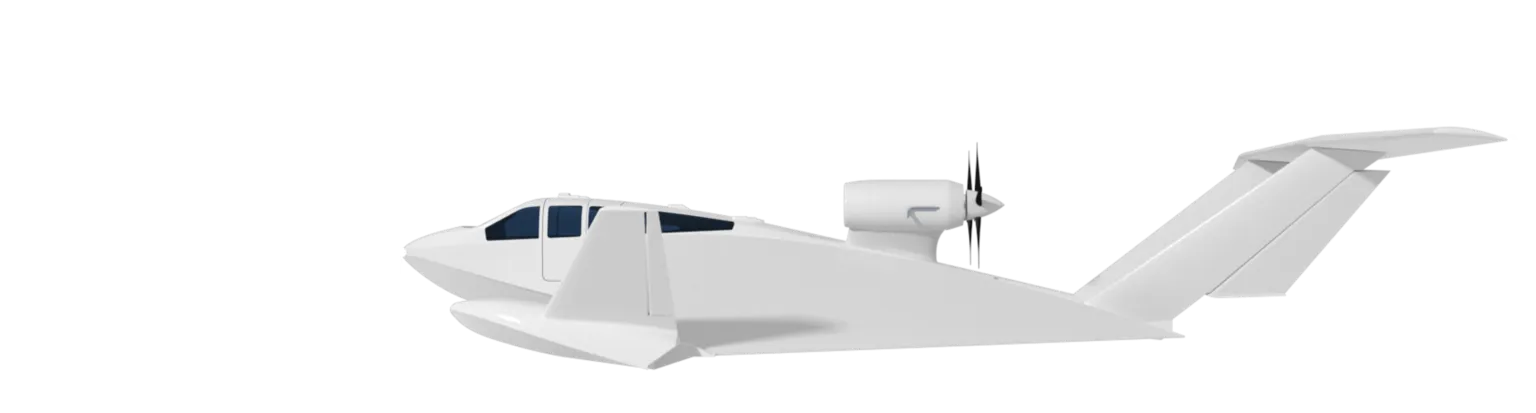

    AirFish IMO Certification

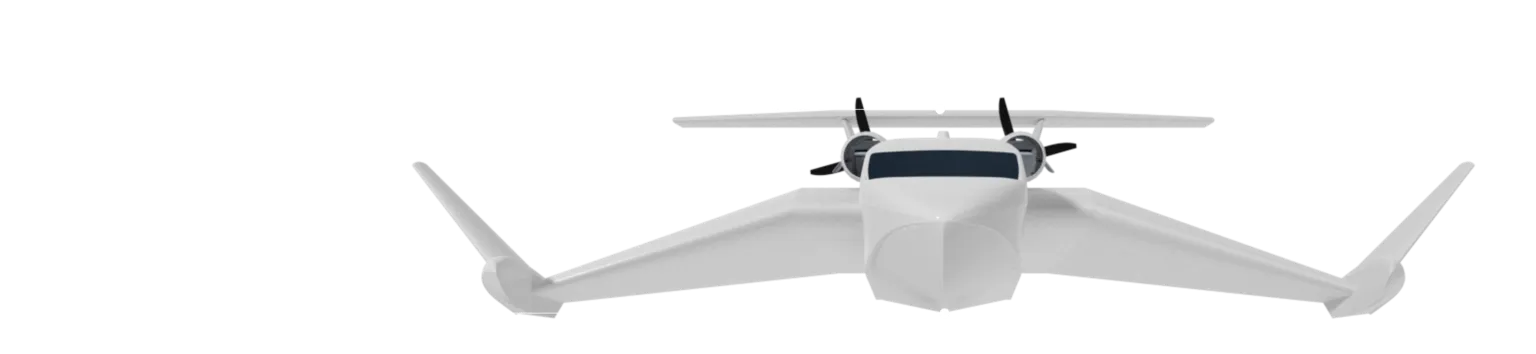

    AirFish Infrastructure

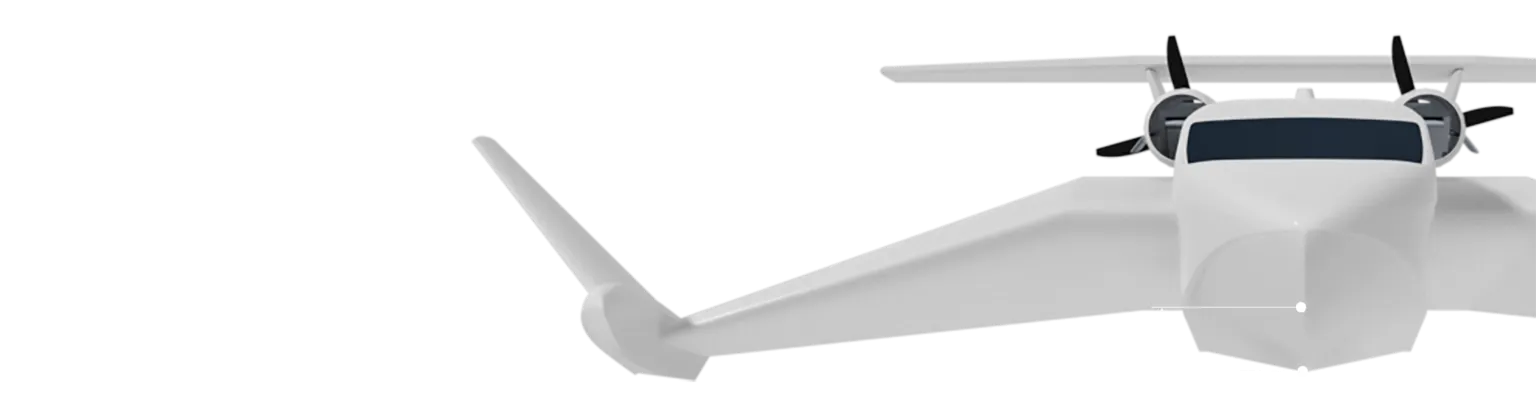

    AirFish Composite Construction

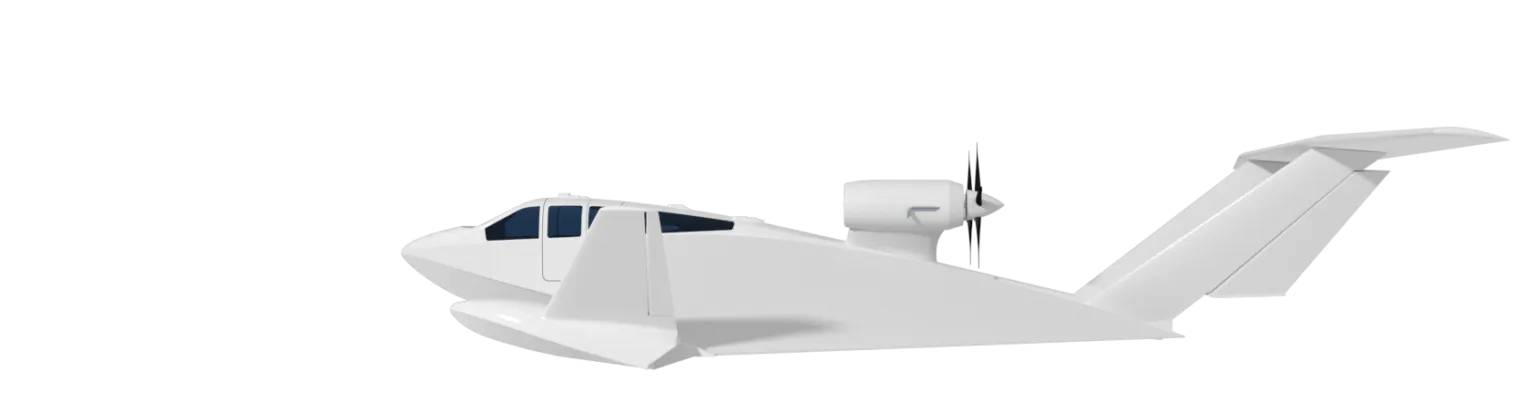

    AirFish Wave Clearance

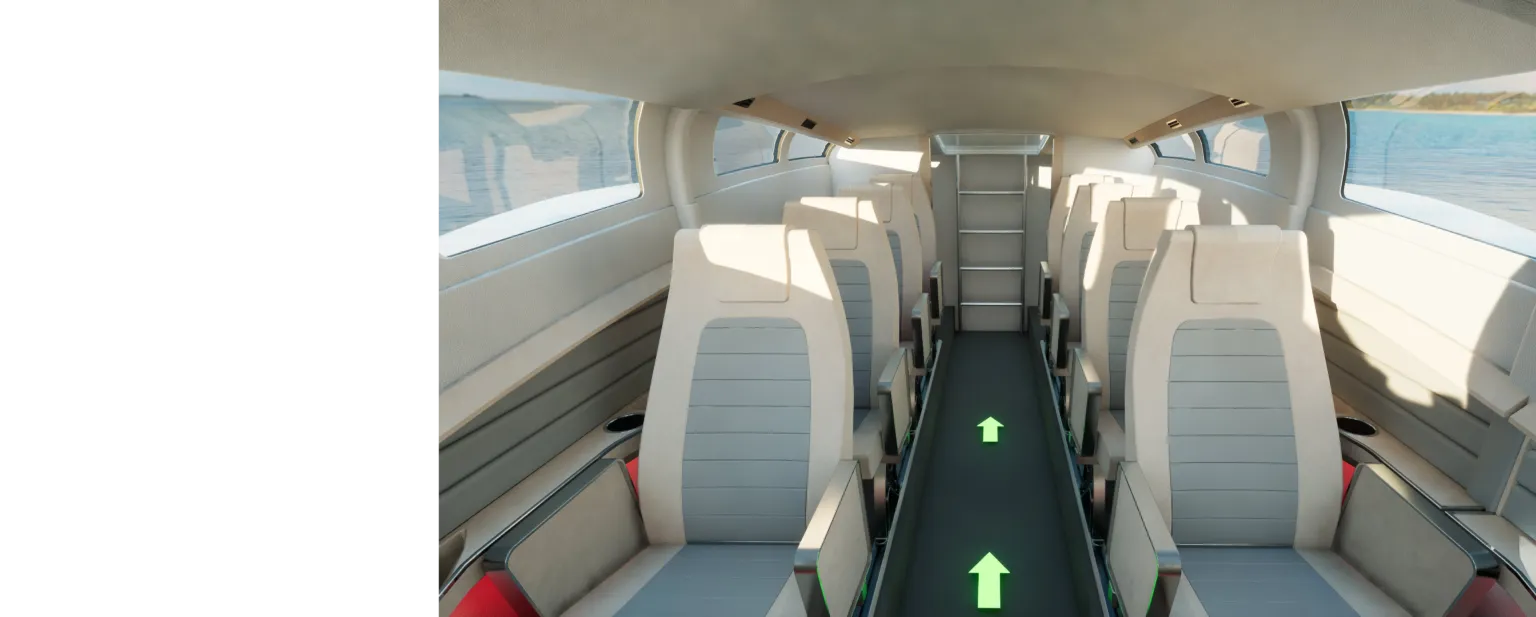

    AirFish Payload & Interior

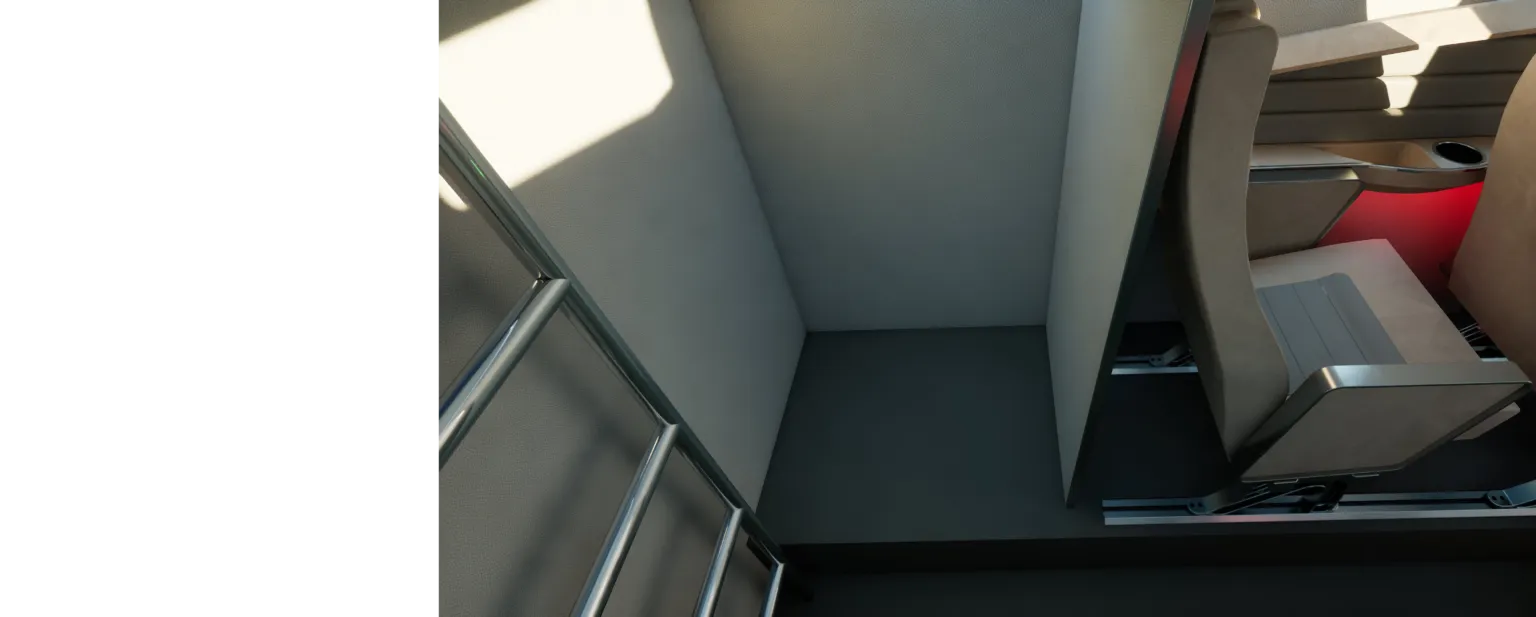

    AirFish Payload & Interior

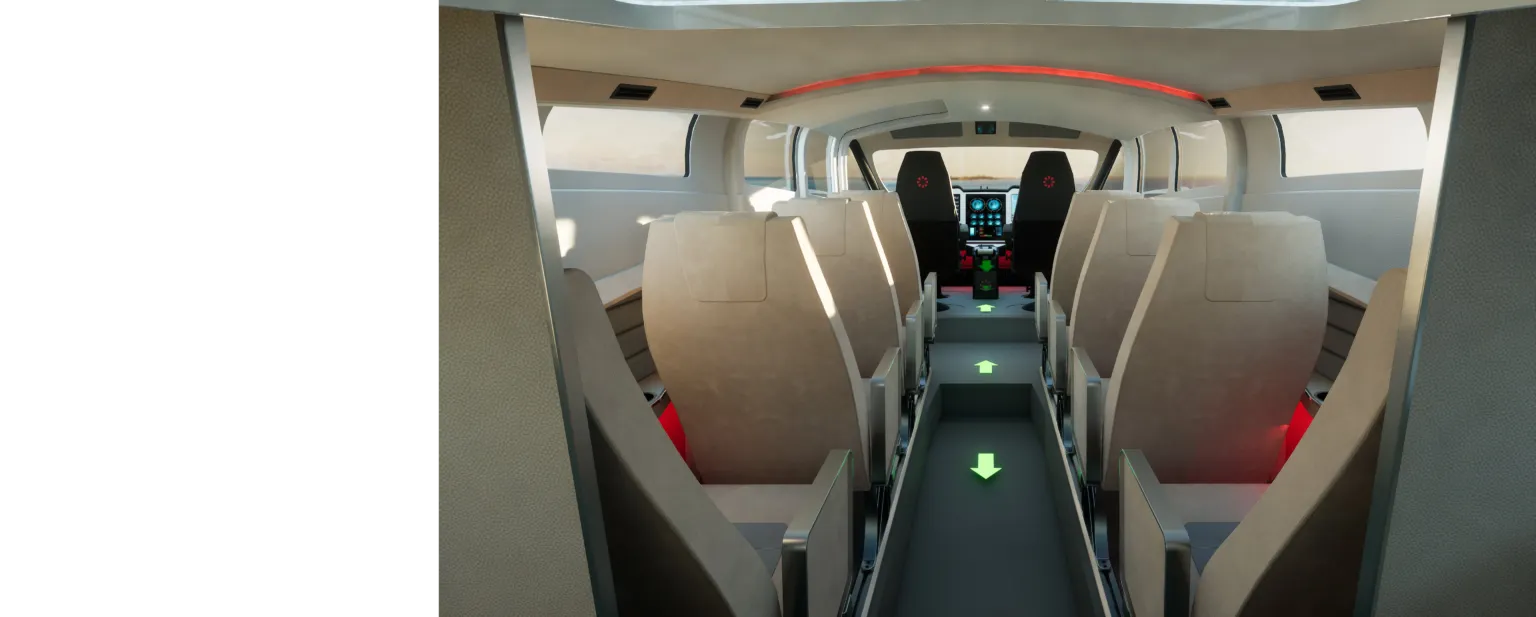

    AirFish Payload & Interior
    AIRFISH
    GALLERY
    03
    03

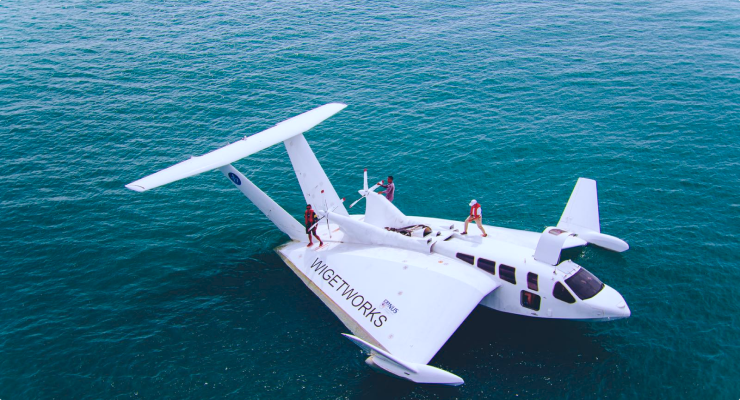

    Gallery image 1

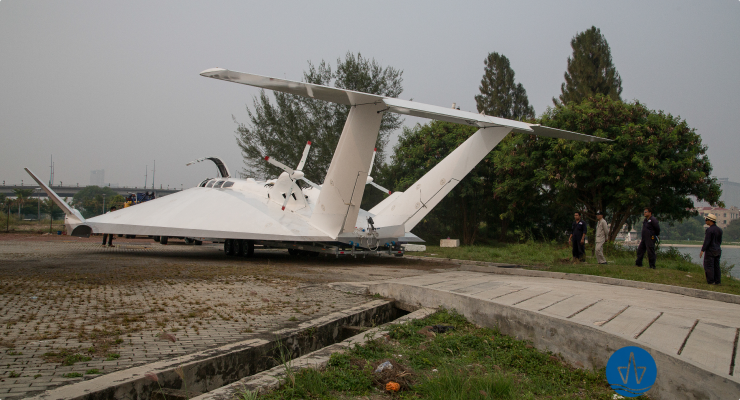

    Gallery image 2

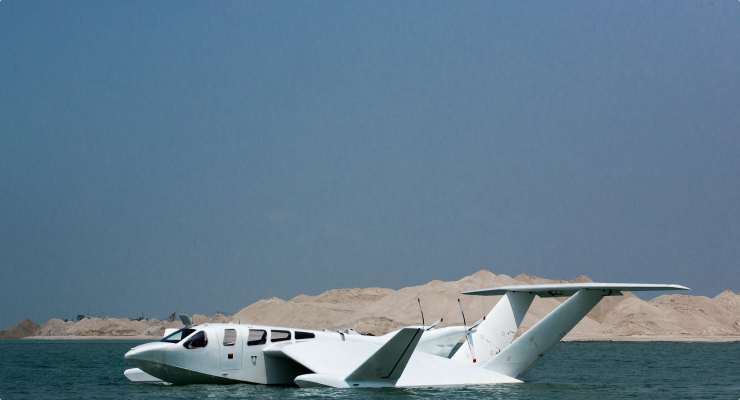

    Gallery image 3

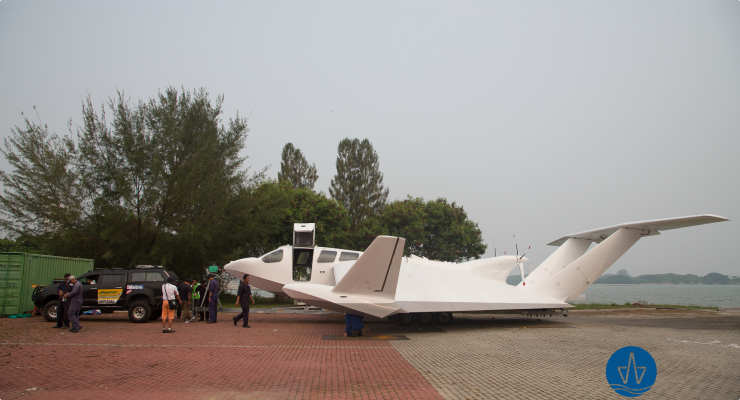

    Gallery image 4

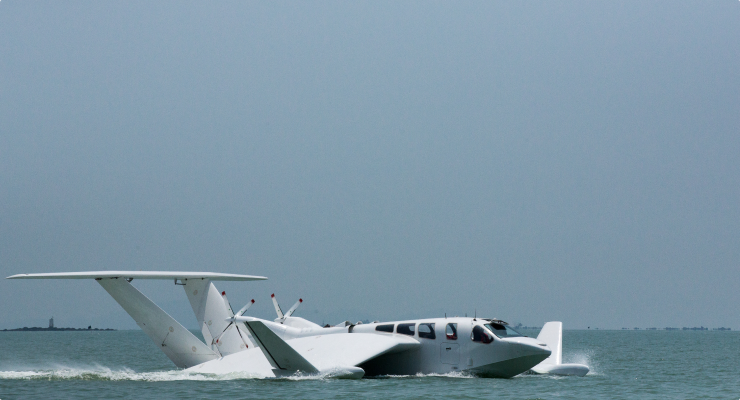

    Gallery image 5
    04
    04
    AIRFISH
    JOURNEY
    2024
    OCT
    Obtained Approval-in-Principle (AiP) from Bureau Veritas for the AirFish production craft under WIG Type A classification, marking a significant milestone in regulatory compliance and safety standards
    2023
    AUG
    Development of AirFish production craft commenced. Building on the success of previous pre-production models, the production model now features twin engines and a series of performance, electronics and interior upgrades.
    2023
    JULY
    Start of Joint Venture between WigetWorks and ST Engineering
    2019
    JUNE
    AirFish 8 featured on Jane’s International Defence Review
    2017
    MARCH
    The M/Y Airfish Voyager successfully completed a 350NM endurance voyage through the busy international shipping lanes of the Straits of Malacca, traveling from the Port of Malacca to Langkawi, Malaysia. This journey marked its participation in the Langkawi International Maritime & Aerospace Exhibition 2017 (LIMA'17).
    2017
    MARCH
    PPC2 was officially registered under the Langkawi International Yacht Registry (LIYR) in Malaysia and renamed to M/Y Airfish Voyager.
    2017
    JANUARY
    Wigetworks owns two fully operational pre-production crafts of AirFish 8
    2016
    NOVEMBER
    Maiden flight of AirFish 8 PPC2
    2015
    DECEMBER
    PPC1 completed Max Take-off Weight (MTOW) trials (8 pax + full fuel)
    2015
    OCTOBER
    Maiden flight of AirFish 8 PPC1
    2011
    OCTOBER
    Began production of AirFish 8 Pre-Production Craft 2 (PPC2)
    2010
    AUGUST
    Joint Research and Development activities between National University of Singapore (NUS) and Wigetworks (WW) funded by NUS, WW and Maritime Port Authority (MPA)
    2010
    AUGUST
    Began production of AirFish 8 Pre-Production Craft 1 (PPC1)
    2010
    AUGUST
    Prototype AirFish 8-001 was accepted for entry into Lloyd’s Register (LR) Class
    2010
    APRIL
    M/V AirFish 8–001 christening ceremony
    EXPLORING THE FUTURE
    PIONEERING INNOVATIONS

    As trailblazers in the industry, we are committed to continually pushing boundaries and redefining the possibilities of efficient flight on water. Our visionary team is dedicated to researching and developing cutting-edge technologies that will shape the future of marine transportation.

    05
    05

    WHAT'S
    NEXT

    AIRFISH FAMILY EVOLUTION icon
    AIRFISH FAMILY EVOLUTION
    GLOBAL EXPANSION icon
    GLOBAL EXPANSION
    NET ZERO EMISSION icon
    NET ZERO EMISSION
    Stay tuned for groundbreaking developments that will revolutionize the way we travel over water. The future of AirFish is set to be as dynamic as the skies we navigate and the waters we conquer.
